How does a speed gun work? Premium

Discover the technology behind speed guns, how they work, and their evolution from radar to LIDAR systems.

The world of today is a world in motion. People constantly want to get somewhere. The heavens are filling up with satellites, our skies with airplanes and rockets, our seas with ships and submarines, and our land with cars, bikes, and trains. Humans have developed laws, rules, technologies, and subsequently entire industries to make sure all these vehicles move smoothly, without harming humans or each other. A small but significant piece of this picture is the speed gun.

A speed gun is a device to measure the speed of a moving object without having to be in contact with the object. To achieve this, the device bounces electromagnetic radiation of a specific frequency off the object, capturing the reflection and using the Doppler effect to infer the object’s speed. Speed guns are electronic, and use complex circuitry to emit the radiation used to make the measurement.

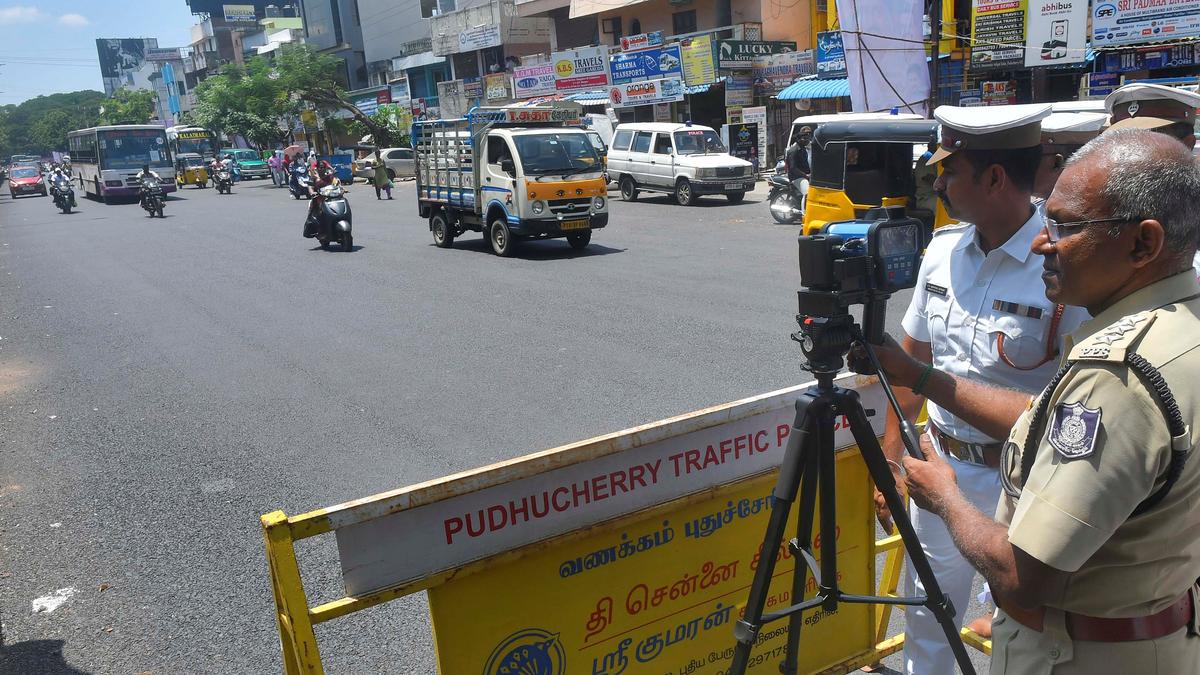

These devices are widely used by law enforcement officials to monitor traffic speed, by coaches to gauge the performance of their athletes, and in various other industries in need of accurate motion tracking.

The Doppler effect is named for the Austrian physicist Christian Doppler and relies on the simple concept of relative velocity. Say there’s a man sitting at the centre of a field blowing a whistle. The sound waves move out in a circular, concentric pattern with the whistle at the centre, and evenly spread out. A woman standing at the edge of the field will receive these waves at frequent intervals — as and when the waves’ crests reach her. (Since sound waves move at 343 m/s in air, human ears can’t hear the gaps.)

Each wave has a frequency and a wavelength. A higher frequency produces a higher pitch and vice versa.

Now, say the whistling man is moving around the field on a buggy. If the buggy is moving towards the woman, the waves in front of the vehicle become bunched up. In other words, from the woman’s perspective, the waves would have acquired both the speed of the buggy in addition to the speed of the sound wave. Thus the waves will reach the woman more frequently, and she will perceive a higher pitch. (For the same reason, the sound will have a lower pitch in a direction behind the buggy.)

This is why, when a train moves into a station, people on the platform will hear the horn blowing at a higher pitch than when the train is leaving the station. This effect is the Doppler effect.
